Intel N97 Industrial Motherboard NAS 4 Cores 4 Threads Processor,2*Intel i226-V (2.5G) Network Card,Supports 1*PCIEx2 Slots,2*M.2 M Key,6*SATA3.0,DDR5 4800MHz Network Card,DP +HDMI+ Type-C
4.2 (110 items)
Limited Time SaleUS$95.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212250696 | Release Date | 2026/04/06 | List Price | US$64.00 | Model Number | 212250696 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

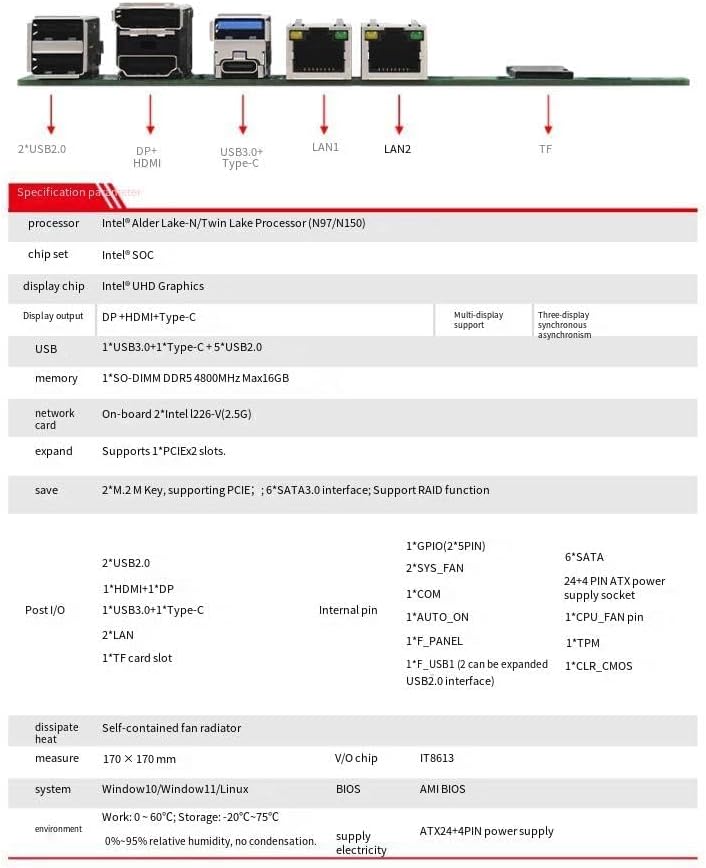

Notice: Specification parameter Processor：Intel Twin Lake Processor (N97) Multi-display support Display output:DP +HDMI+ Type-C USB:1*USB3.0+1*Type-C+ 5*USB2.0 Memory:1*SO-DIMM DDR5 4800MHz Max16GB Network card:On-board 2 * Intel L226-V (2.5g) network card Expand:Supports 1*PCIEx2 slots Storage :2*M.2 M Key, supporting PCIE；; 6*SATA3.0 interface Dissipate heat :Self-contained fan radiator Size: 170× 170 mm System :Window10/Window11/Linux BIOS:AMI BIOS Environment:Work: 0 ~ 60℃; Storage:-20℃ ~ 75℃, 0% ~ 95% relative humidity, no condensation Supply electricity:ATX 24+4 PIN power supply
- 【Low power processor】Intel Celeron Processor N97/N150: 4 Cores 4 Threads Low Power Processor,2*M.2 M Key,with Intel UHD Graphics.
- 【High speed network card】This NAS motherboard has 2* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--1* USB3.0, 5* USB2.0,for USB booting of the NAS system.With 1* HDMI and 1* DP.
- 【 Storage and Memory】1*SO-DIMM DDR5 4800MHz Max16GB network card，2*M.2 M Key, support PCIE; 6*SATA3.0 interface.
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
| Brand | HKUXZR |
|---|---|
| Platform | Linux, Windows |
| CPU Model | Celeron N |
| Chipset Type | Intel SOC |
| Manufacturer | HKUXZR |
| Model Number | N97 |
| Total Usb Ports | 7 |
| Processor Socket | FCBGA1264 |
| Total SATA Ports | 6 |
| Compatible Devices | Mouse |
| Memory Clock Speed | 4800 MHz |
| Warranty Description | One year warranty |
| Compatible Processors | N97 |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 16 GB |
| Number of Ethernet Ports | 3 |
| Main Power Connector Type | 24-Pin+4Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
